Values
| Diameter (mm) | Weight (g/m) | MBF (kN) | MBF (tf) |
|---|---|---|---|
| 28 | 594 | 116 | 11,8 |
| 30 | 682 | 132 | 13,5 |
| 32 | 776 | 150 | 15,3 |
| 36 | 982 | 188 | 19,2 |
| 40 | 1 210 | 230 | 23,4 |
| 44 | 1 470 | 276 | 28,1 |
| 48 | 1 750 | 326 | 33,2 |
| 52 | 2 050 | 380 | 38,7 |
| 56 | 2 380 | 437 | 44,5 |
| 60 | 2 730 | 500 | 51 |

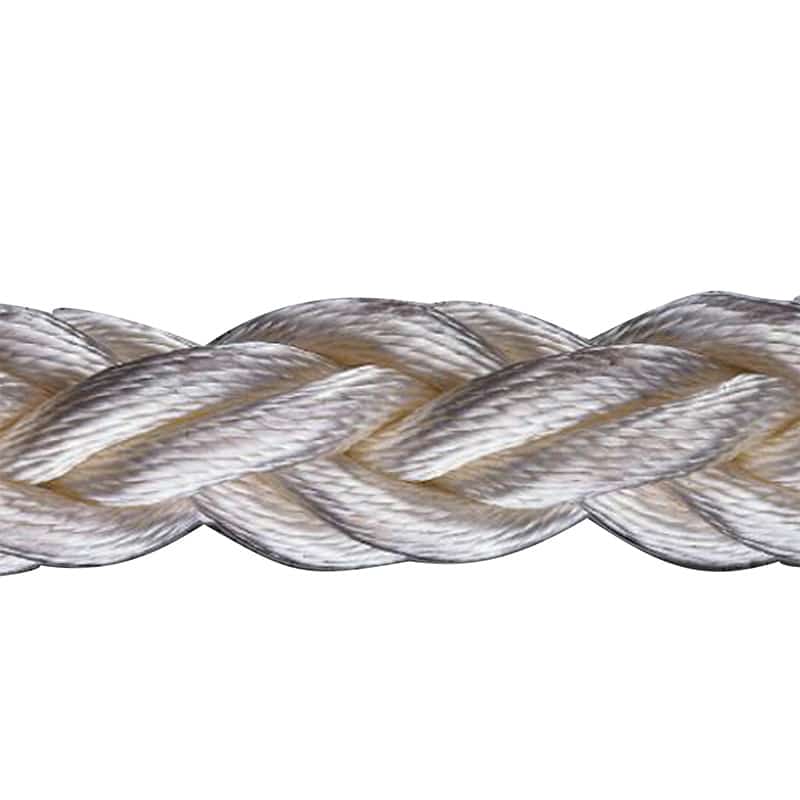

8-strand braided PES hawser
8-strand braided PES hawser
Polyester fiber (PES) has remarkable properties: it can be exposed to long periods of UV light without being damaged. It’s a flowing rope with good resistance to breakage and abrasion, but low elasticity.
Applications
Multiple use: Mooring
Technical data
Elasticity
Abrasion resistance
Breaking strength
UV resistance
TCLL
Features
- Melting point: 260° C
- Water absorption: <1%.
- Very fine round filaments
- Smooth, glossy appearance
- Dry, slippery rope
- Flexible strands
- Density: 1.38 (pourable)
- Construction: 3, 4 or 8 strands
- Composition: Polyester rope
- Color: Ecru
- Packaging: 200m splice with spliced eye on request
