Values
| Diameter (mm) | Weight (kg/m) | Breaking strength |
|---|---|---|
| 10 | 5,6 | 2 000 |
| 12 | 8,6 | 3 000 |
| 14 | 11,0 | 4 100 |
| 16 | 15,5 | 5 300 |
| 18 | 20,6 | 6 700 |
| 20 | 24,7 | 8 300 |
| 22 | 31,5 | 10 000 |

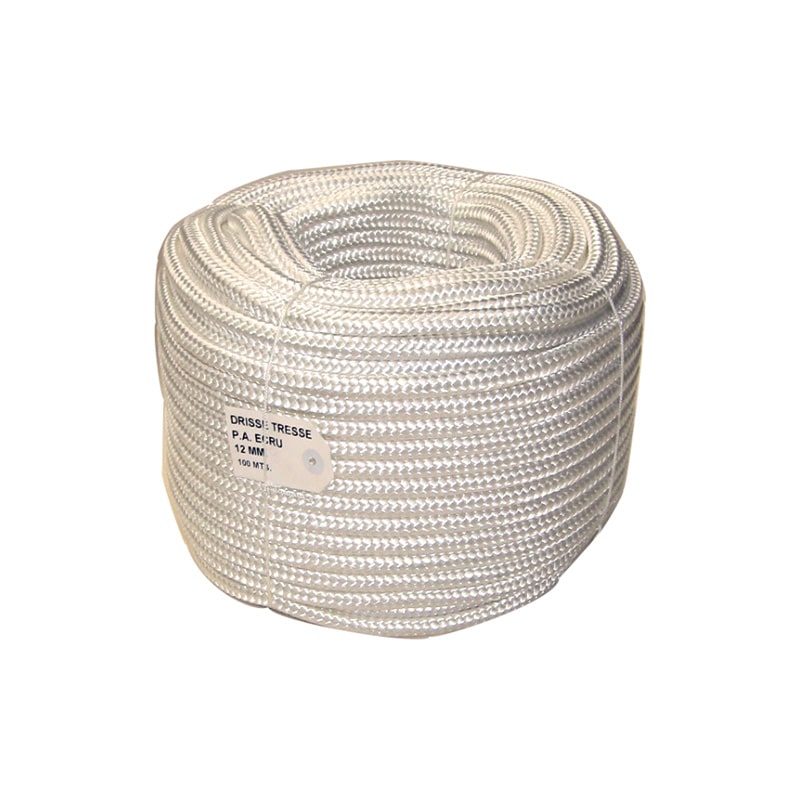

Standard polyamide double braid
Standard polyamide double braid
Polyamide fiber (PA) is the material par excellence for designing nets, ropes and seines. It’s a flowing rope with good elasticity (breaking strength close to 40%) and memory effect.
Applications
Bottom trawling: codend releases
“
Technical data
Elasticity
Abrasion resistance
Breaking strength
UV resistance
TCLL
Features
- Melting point: 218° C
- Water absorption: 4%.
- Very fine round filaments
- Smooth, glossy appearance
- Greasy, slippery strings
- Highly flexible strands
- Density: 1.14 (pourable)
- Construction: 3, 4, 6 or 8 strands
- Composition: Polyamide rope.
- Color: Off-white
- Packaging: 100m coil
